RAY90

NFC Reader
Easily install and use where NFC
payments are needed with Bluetooth.
  • NFC Reader
  • Compact & Tiny size
  • Stable docking with a
    dedicated cradle

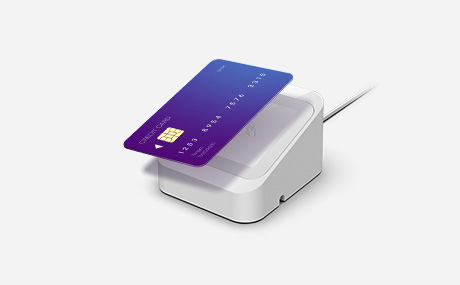

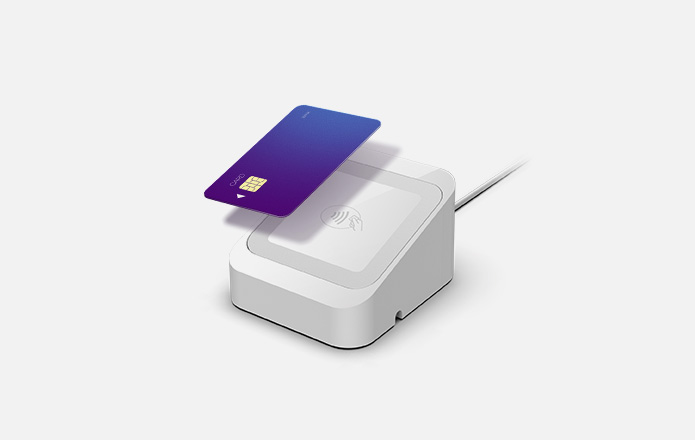

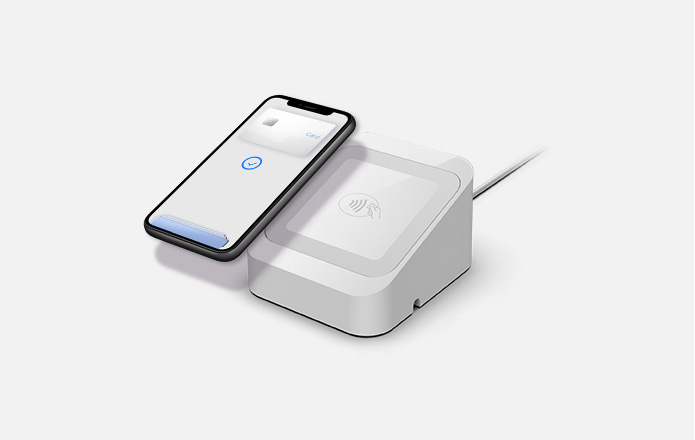

NFC Payment

  • Supports NFC
  • Mobile NFC

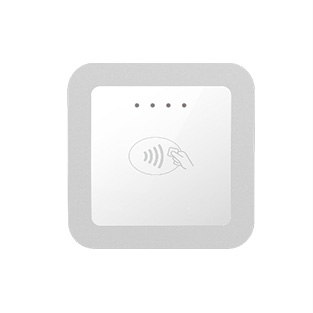

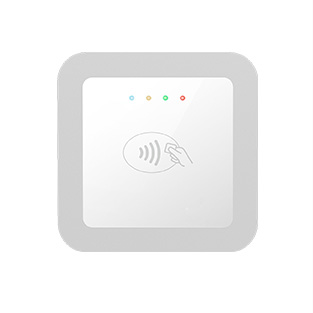

LED status indicator

LED status
indicator

Blue: Waiting for card detection.

Yellow: Card detection in progress.

Green: Card detection successful.

Red: Processing failed.

  • LED Light Off
  • Poke On/Off Available

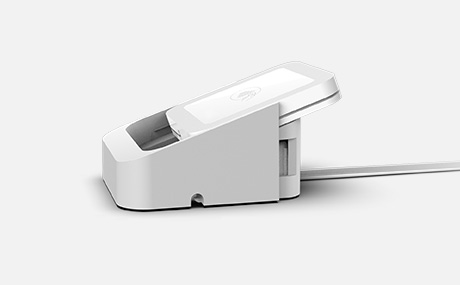

Stable docking with a dedicated cradle

Recommended store

Small store

RAY90 Specs

  • Processor
    ARMv7-M core, 204Mhz
  • O/S
    F/W
  • Memory

    Flash 1Mbyte, Ext. 1Mbyte

    SRAM 1Mbyte

  • Contactless
    Card Reader
    ISO14443 Type A/B,
    ISO15693, Mifare, Felica
  • Peripheral port
    5 PIN Wire Cable

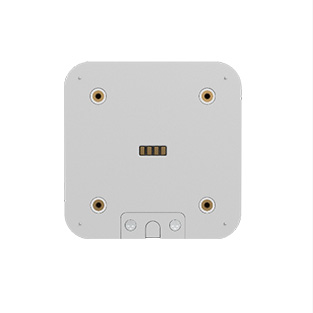

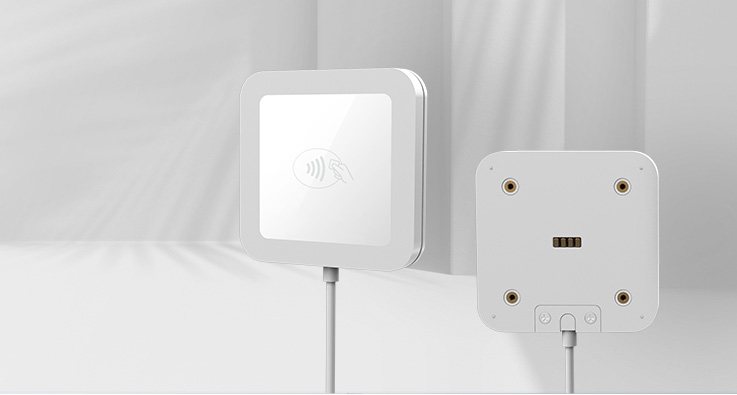

  • Contact Port
    4 PIN Gold Plate
    Terminal
  • Sound
    Buzzer
  • Certification

    ISO14443 Type A/B, ISO15693, Mifare, Felica

    EMV Contactless L1, MCL, VCL, AMEX, JCB, CUP, FC,CE,RoHs

  • Operating
    Temperature
    0ºC to +50 ºC
  • Power Supply
    5V 500mA

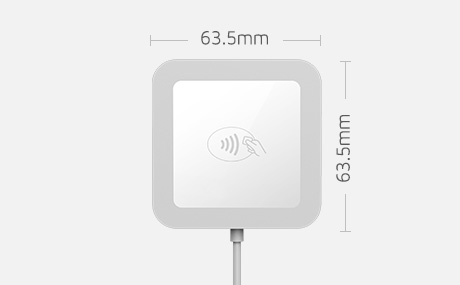

  • Dimension
    63.5mm X
    63.5mm X
    9.5mm

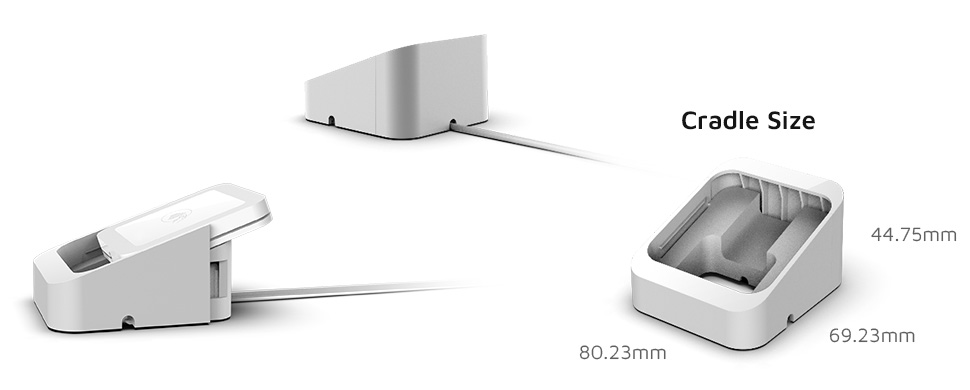

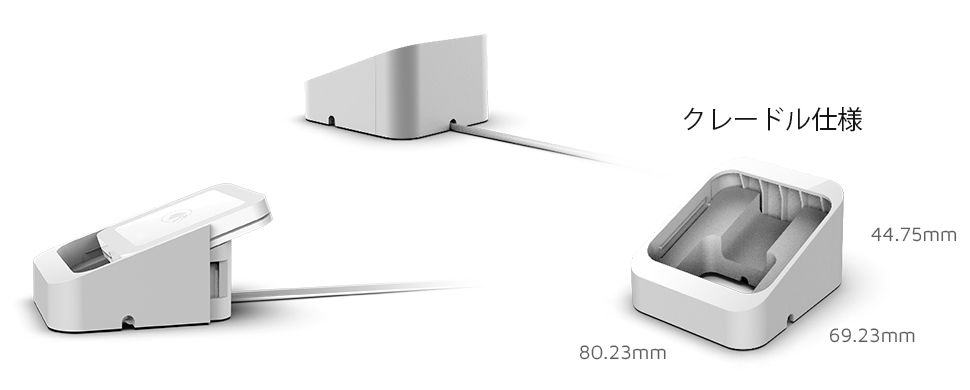

  • Dimension
    (+Cradle)
    80.23mm X
    69.23mm X
    44.75mm
