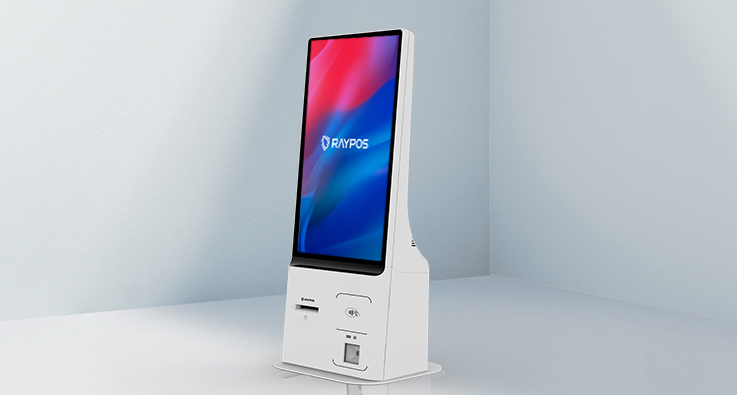

RAY71

23.8" Android Smart Kiosk
23.8" Android Self Service Kiosk
For the digital transformation of your store
  • Cortex-A55 core

    Optimal CPU for a self-service kiosk.

  • Fast and smooth operation,
    large memory

    DDR4 2GB (Up to 4GB)
    eMMC 16GB (Up to 32GB)

  • WiFi / Bluetooth Support

    Stable & expanded
    communication

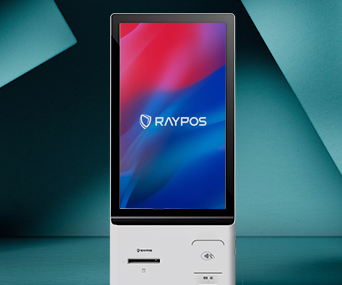

  • Clear and Fast

    Response with full HD
    Capacitive 23.8” Touch Screen

23.8” Clear and Fast Response
with full HD Capacitive Touch Screen

With a capacitive touch screen instead of a pressure-sensitive screen,
it offers high recognition accuracy for precise and convenient use.

Configuration

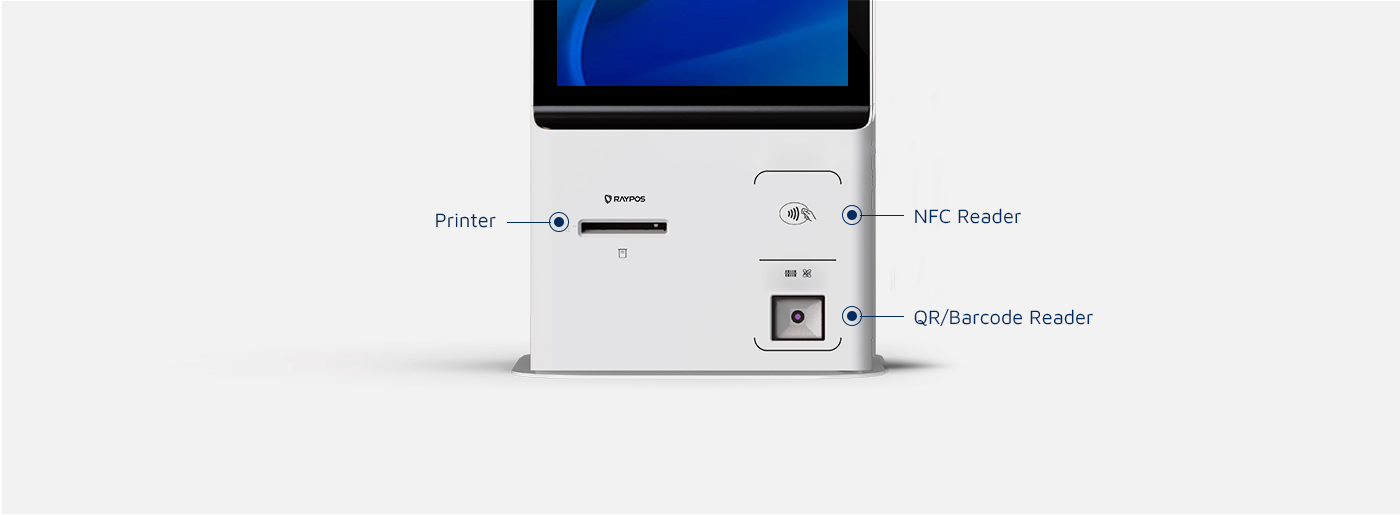

Supports high-performance QR/Barcode scanning and NFC Reader

Seamless Wifi & Bluetooth function

Stable Connections enabling expanded communication with various solutions &
no errors in operation and orders.

Convenient assembly with modular design

All parts are modularized, allowing for quick and easy response in the event of A/S and efficient cost reduction.

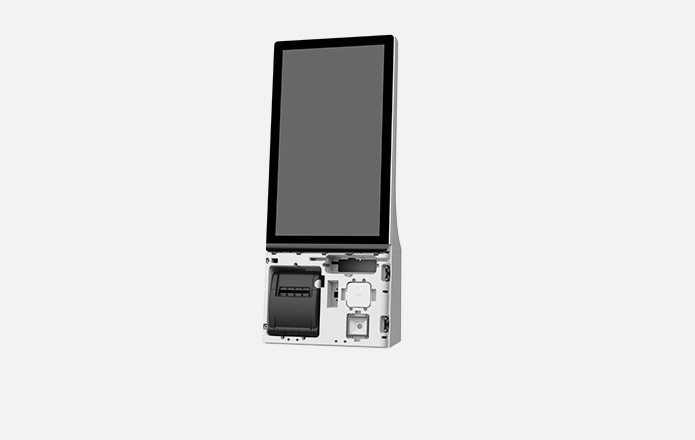

  • Internal module

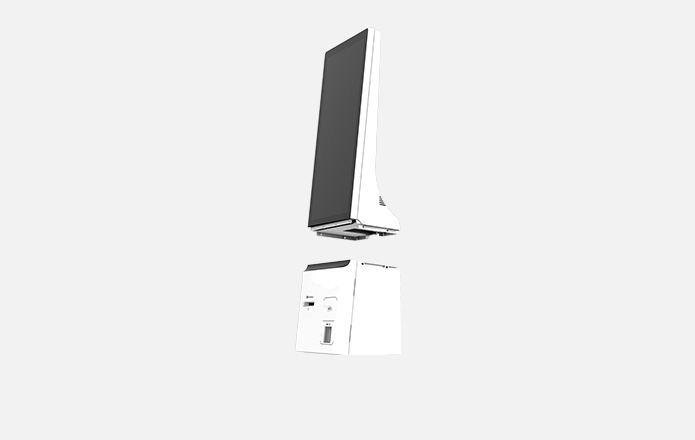

  • Monitor separation

Application Senarios

  • 01

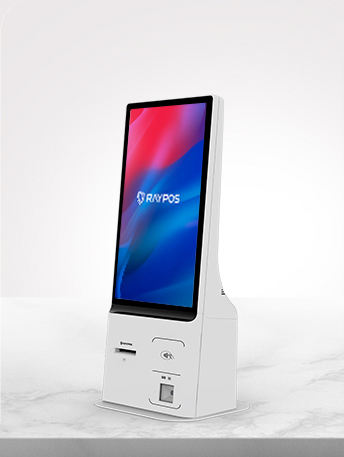

    Counter top Single Monitor Version
  • 02

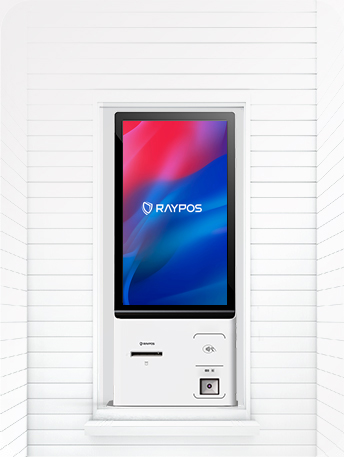

    Vertical Wall-Mount Version
  • 03

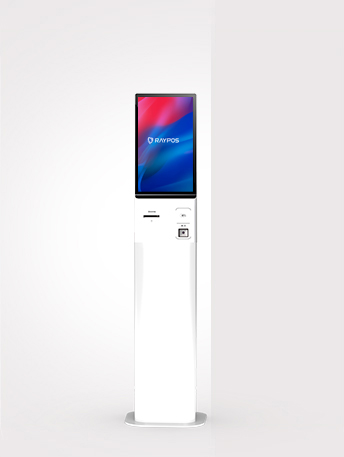

    Stand Version
  • 04

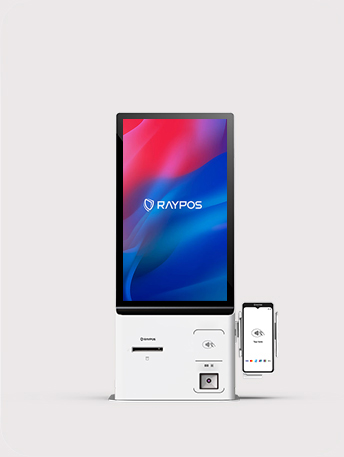

    With Smart Payment Terminal(RAY10)
이전
다음
  • Counter top Single
    Monitor Version
  • Vertical Wall-Mount
    Version
  • Stand Version
  • With bracket with Card Reader (RAY10)

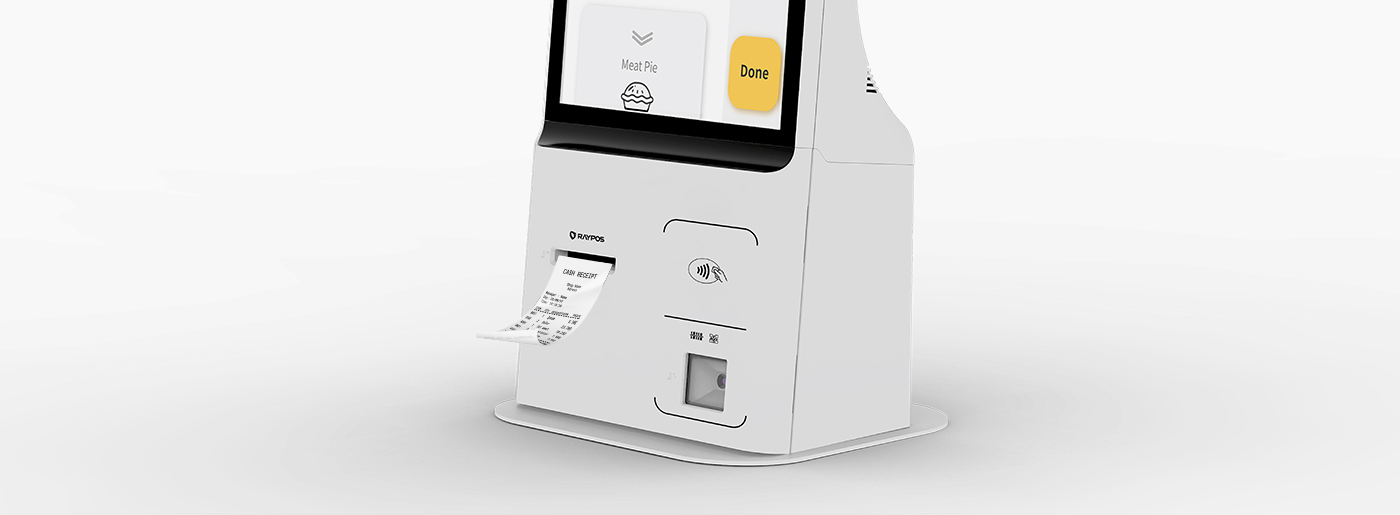

3” Printer

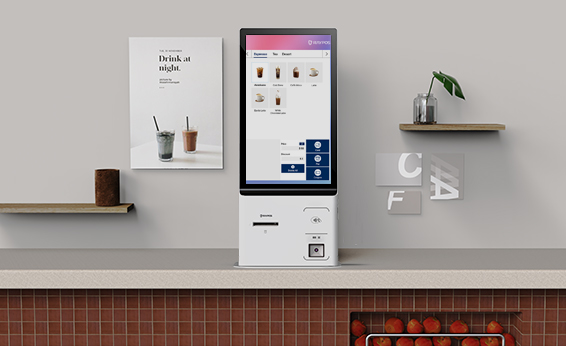

Retail & Restaurant

RAY-71 Kiosk provides a self-service payment
solution that reduces labor costs and enhances
operational efficiency It can be utilized in
various fields such as retail, food service,
and Healthcare

Various application
scenarios

RAY71 smart kiosk can be installed in various
locations, such as hospitals and museums for
ticketing and check-in.

RAY71 Specs

  • Processor
    4x Cortex-A55 core,
    2.0GHz
  • O/S
    Android 11
  • Memory

    DDR4 2GB (Up to 4GB)

    eMMC 16GB (Up to 32GB)

  • Main Display

    23.8 Inch, TFT Color LCD 1920 x 1080pixels (LED Backlight)

    Capacitive Touch Panel

  • WiFi
    802.11b/g/n
  • Bluetooth
    BLE 4.2
  • Printer
    3" Thermal Printer, 220mm/s, 80ф Roll paper
  • Barcode Reader
    1D/2D Reader,
    CMOS Camera, 0.3MP
  • Sound
    5W x 2 Speaker
  • Operating
    Temperature
    0ºC to +50 ºC
  • NFC Reader
    (Option)

    ISO 14443 Type A/B,ISO18092, Mifare, Felica

    EMV CL1. AMEX VISA,
    MASTER, JCB, CUP

    CE, FCC, KC

  • Peripheral ports

    Rear2(USB 3.0 x 2 ports),
    Front2(USB 2.0 x 2 ports)

    Serial x 1 (DSUB9)

    Ethernet x 1 (RJ45)

    DC-Jack x 1
    (Power DIN 4P)

  • Power Supply
    24V DC @2.5A
  • Dimension
    357.9mm(W) x
    217.6mm(D) x
    851.3mm(H)
  • Certification
    FCC, CE, RoHs

Smart Payment Terminal(RAY10)

  • RAY10 Certification

    PCI PTS V7, EMV Contact L1, EMV Contact L2, EMV CL1

    AMEX VISA, MASTER, JCB, Discover, Felica

    CE, FCC, Telec, KC, TQM
