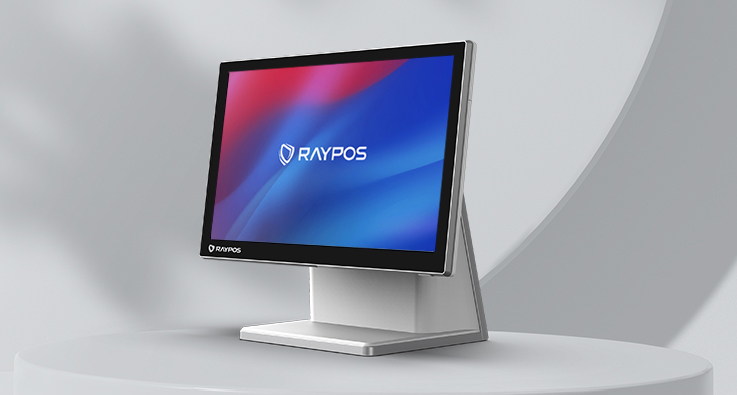

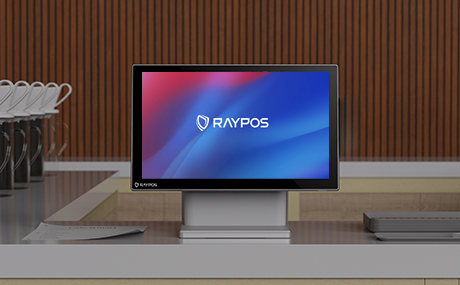

RAY50
Smart Desktop POS
A high-performance Desktop
for your business efficiency.
for your business efficiency.
Products
-
Enhanced Functionality with
High-Performance ProcessorDDR4 2GB (Up to 4GB)
eMMC 16GB (Up to 32GB)
-
16:9 Wide Screen,
Fast Response Time -
WiFi / Bluetooth SupportStable & expanded communication
Enhanced Functionality
with High-Performance Processor
Equipped with a quad-core high-performance processor and RAM 2GB +
ROM 16GB memory, the RAY50 offers smooth operation.
ROM 16GB memory, the RAY50 offers smooth operation.
- Coretex-A55
-
DDR4 2GB (Up to 4GB)
eMMC 16GB (up to 32GB)
- Android 11

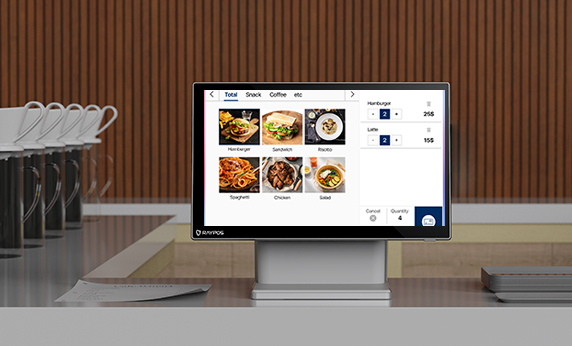

16:9 Wide Screen,
Fast Response Time
01
The 16:9 aspect ratio provides a wider view, and the capacitive touch screen ensures durability and quick response.
02
1920*1080 high-resolution display
Extensive Connectivity and
Integration & Stable Connection
01
Built-in wireless communication such as Bluetooth and WiFi allows connectivity with various devices like speakers and card readers.
02
Stable and fast data transfer using WiFi and Bluetooth 4.2
-

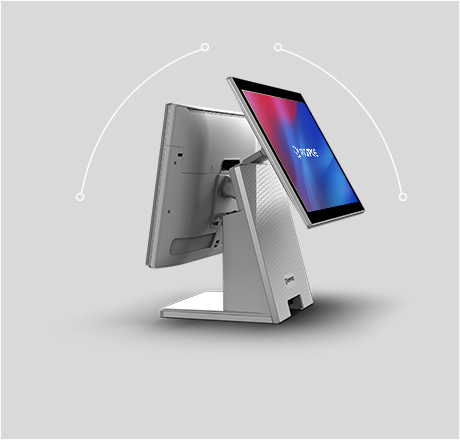

Monitor flexibility -

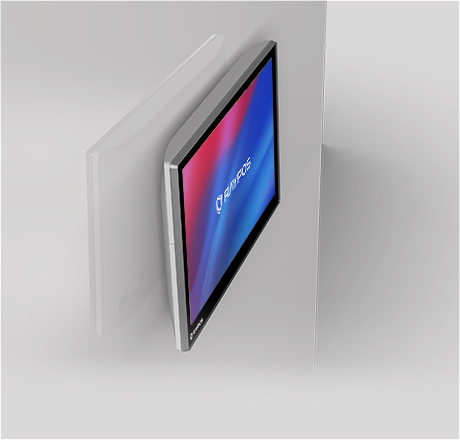

Wall-mounted version -

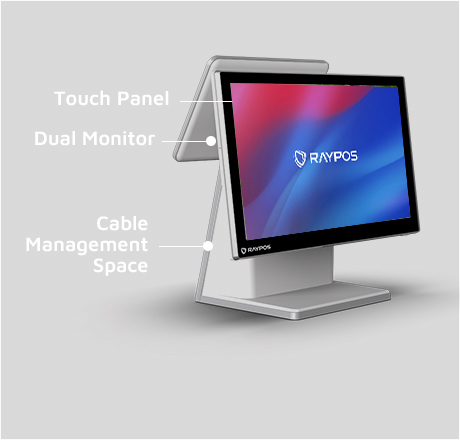

Component Names
Option
-

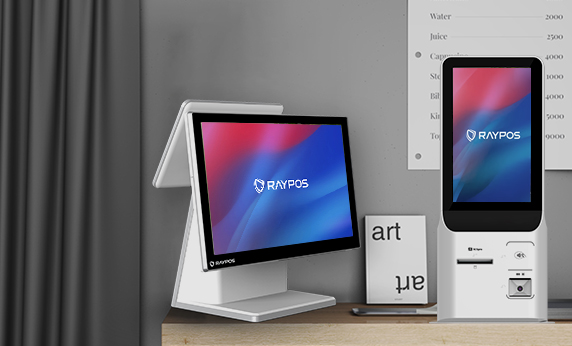

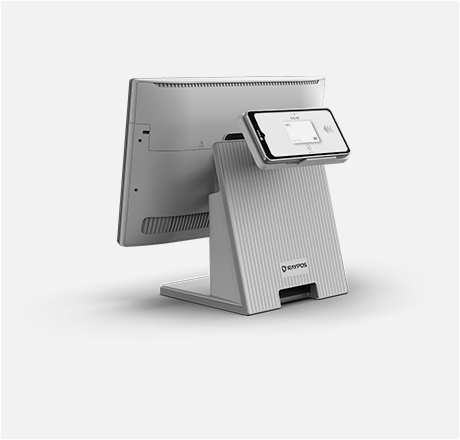

15.6”+ Smart Payment Terminal(RAY10) -

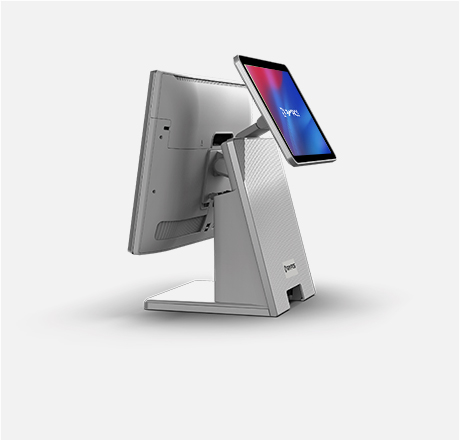

15.6” + 10.1” -
15.6” + 15.6”
Recommended store
-
Restaurants -
Grocery Stores -
Clothing Shop -
To-Go Specialty Stores
RAY50 Specs
-
- Processor
- 4x Cortex-A55 core, 2.0GHz
-
- O/S
- Android 11
-
- Memory
-
DDR4 2GB (Up to 4GB)
eMMC 16GB (Up to 32GB)
-
- Main Display
-
15.6 ", TFT Color LCD 1920 x 1080pixels (LED Backlight)
Capacitive Touch Panel
-
- WiFi
- 802.11b/g/n
-
- Bluetooth
- BLE 4.2
-
- Sound
- 2W x 2 Speaker
-
- Operating Temperature
- 0ºC to +50 ºC
-
- Power Supply
- 24V DC @2.5A
-
- Dimension
- 389mm(W) x 191.9mm(D) x 314.5mm(H)
-
- Certification
- FCC, CE, RoHs
-
- Peripheral ports
-
Rear5 (USB 3.0 x 2 ports, USB 2.0 x 2 ports), Side2 (USB 2.0 x 2 ports)
Serial x 1 (DSUB9)
Ethernet x 1 (RJ45)
HDMI x 1
Audio Jack(3.5ф)
Cash Drawer port(RJ11, 6 Pin)
DC-Jack x 1 (Power DIN 4P)
Display Options
-
- Display (10.1 ")
-
10.1 ", TFT Color 1920 x 1080 pixels(LED Backlight)
Capacitive Touch Panel(Option)
-
- Display(15.6 ")
-
15.6 ", TFT Color 1920 x 1080 pixels(LED Backlight)
Capacitive Touch Panel(Option)
Smart Payment Terminal(RAY10)
-
- RAY10 Certification
-
PCI PTS V7, EMV Contact L1, EMV Contact L2, EMV CL1
AMEX VISA, MASTER, JCB, Discover, Felica
CE, FCC, Telec, KC, TQM
