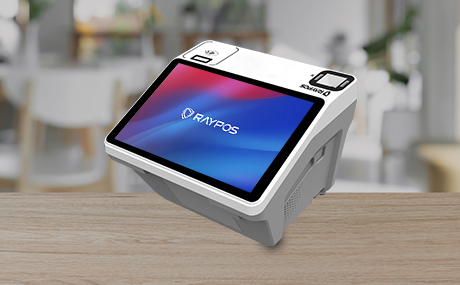

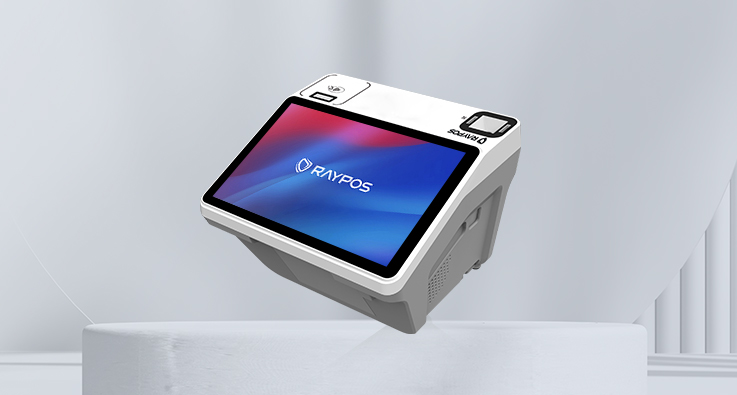

RAY51

Smart Desktop POS
Compact Design MINI Desktop for
efficient use of space
  • Enhanced Functionality with
    High-Performance Processor

    DDR4 2GB (Up to 4GB)

    eMMC 16GB (Up to 32GB)

  • 10.1” Ideal for efficient use of space
  • Extensive Connectivity and
    Integration With Various Devices

Enhanced Functionality
with High-Performance Processor

Equipped with a quad-core high-performance processor and 2GB
DDR4 + 16GB eMMC memory, the RAY51 offers smooth operation.
  • Coretex-A55

  • DDR4 2GB (Up to 4GB)

    eMMC 16GB (up to 32GB)

  • Android 11

10” Ideal for efficient
use of space

Versatility that shines in small spaces like convenience stores,
food trucks, and small shops

Extensive Connectivity and
Integration With Various Devices

01
Built-in wireless communication such as Bluetooth and WiFi
allows connectivity with various devices like speakers and card readers.
02
Stable and fast data transfer using WiFi and Bluetooth 4.2

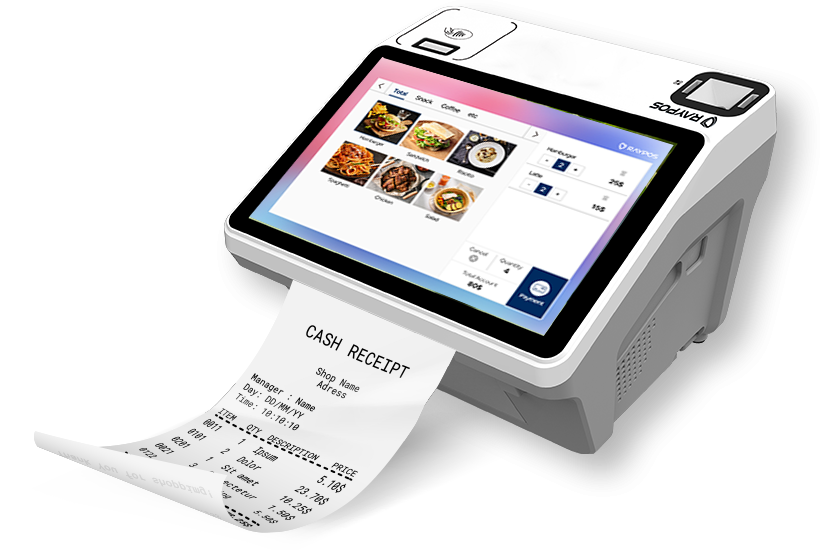

Printer Features

  • 250mm/s
    Print Speed
  • 80mm
    Paper roll Diameter
  • 3inch
    Paper width
  • Auto cutter

Configuration

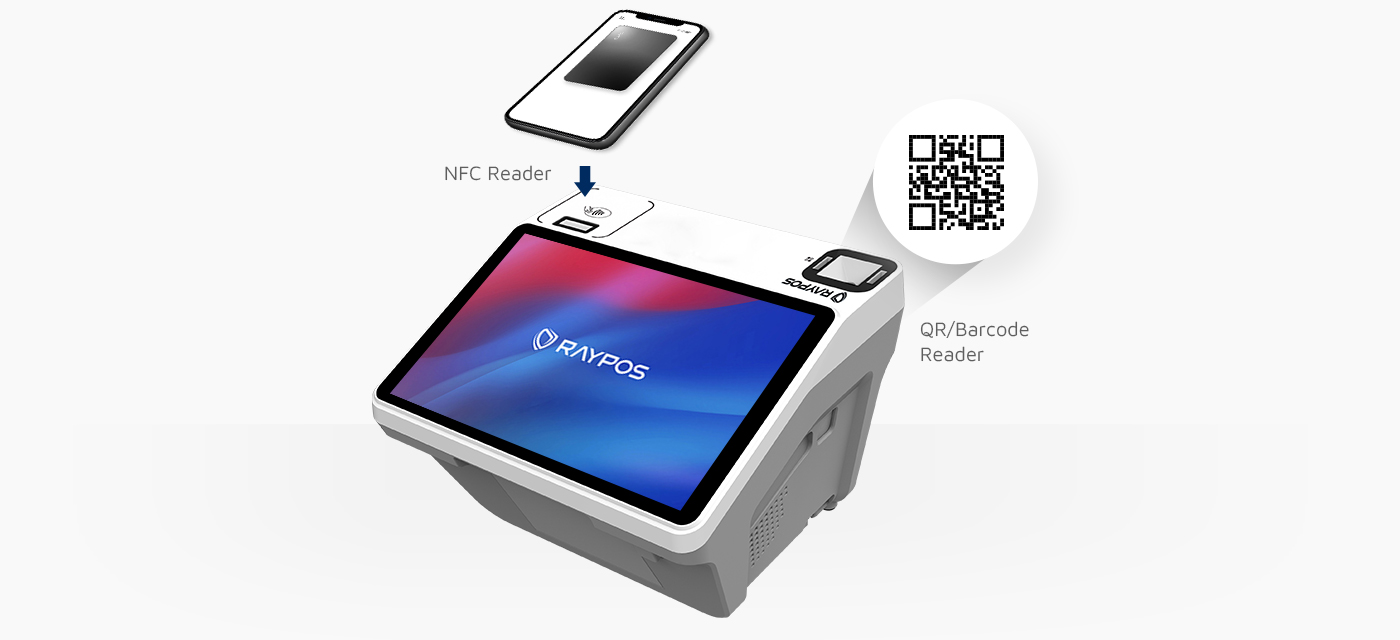

Supports high-performance
QR/Barcode scanning and NFC Reader

Option

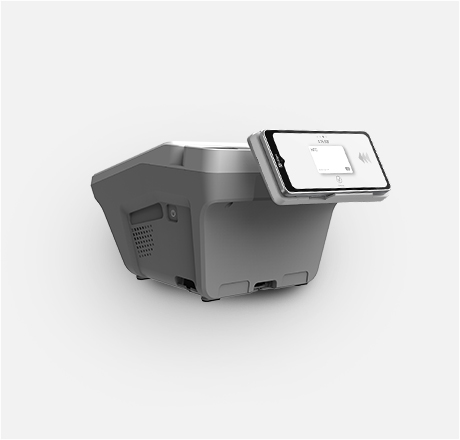

  • With Smart Payment Terminal
    (RAY10)

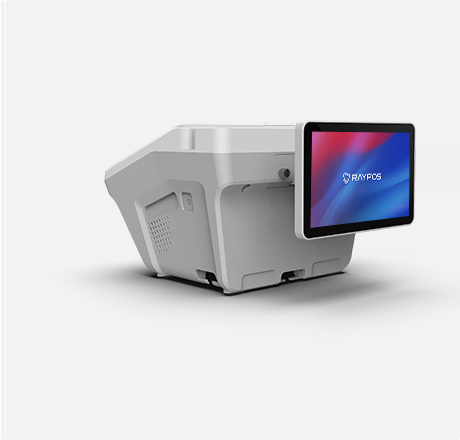

  • Customer Display 7”

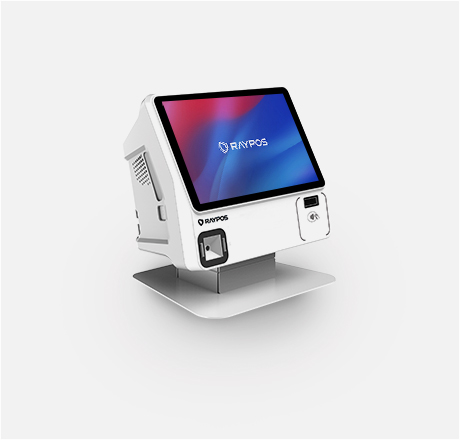

  • Stand

Recommended store

  • Convenience store
  • Food trucks
  • Small shops

RAY51 Specs

  • Processor
    4x Cortex-A55 core,
    2.0GHz
  • O/S
    Android 11
  • Memory

    DDR4 2GB (Up to 4GB)

    eMMC 16GB (Up to 32GB)

  • Main Display

    10.1 ", TFT Color LCD 1280 x 800pixels (LED Backlight)

    Capacitive Touch Panel

  • WiFi
    802.11b/g/n
  • Bluetooth
    BLE 4.2
  • Printer
    3" Thermal Printer, 250mm/s, 80ф Roll paper
  • Barcode Reader
    1D/2D Reader,
    CMOS Camera, 0.3MP
  • Sound
    2W x 2 Speaker
  • Operating
    Temperature
    0ºC to +50 ºC
  • NFC Reader
    (Option)

    ISO 14443 Type A/B,ISO18092, Mifare, Felica

    EMV CL1. AMEX VISA,
    MASTER, JCB, CUP

    CE, FCC, KC

  • Peripheral ports

    DSUB9 serial x 1

    USB Host x 3, USB OTG x 1

    Ethernet x 1 (RJ45)

    RJ11, 6 Pin

    DC-Jack x 1
    (Power DIN 4P)

  • Power Supply
    24V DC @2.5A
  • Dimension
    256mm(W) x
    231.1mm(D) x
    191.3mm(H)
  • Certification
    FCC, CE, RoHs

Display Options

  • Display (7")
    7", TFT Color 800 x 480 pixels(LED Backlight) Capacitive Touch Panel(Option)

Smart Payment Terminal(RAY10)

  • RAY10 Certification

    PCI PTS V7, EMV Contact L1, EMV Contact L2, EMV CL1

    AMEX VISA, MASTER, JCB, Discover, Felica

    CE, FCC, Telec, KC, TQM
