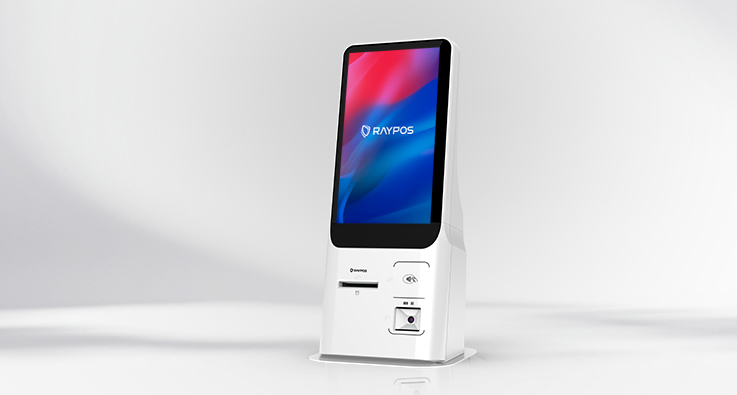

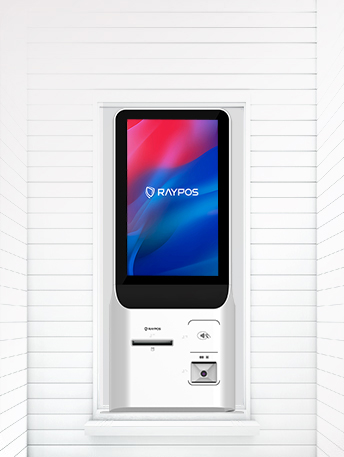

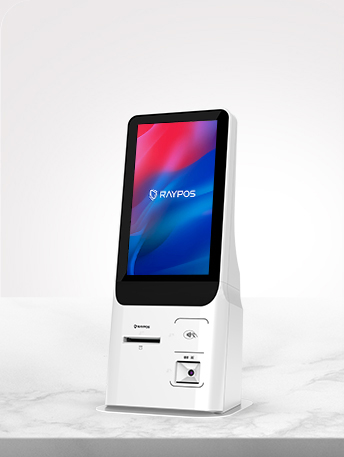

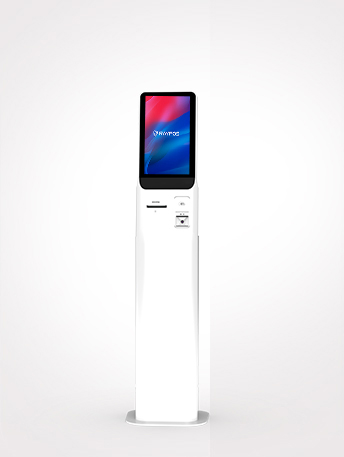

15.6" Android Smart Kiosk

Seamlessly into any place15.6"
Android Smart Kiosk

Cortex-A55 core

Optimal CPU for a self-service kiosk.
DDR4 2GB (Up to 4GB)
eMMC 16GB (Up to 32GB)

Fast and smooth operation, large memory
WiFi / Bluetooth Support

Stable & expanded
communication

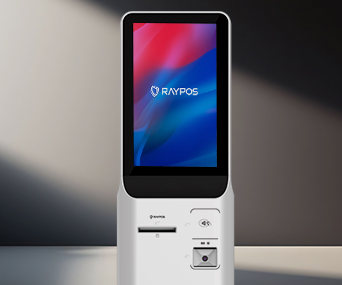

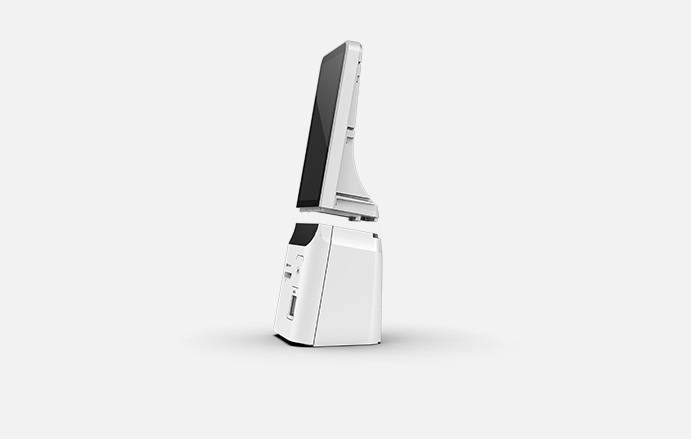

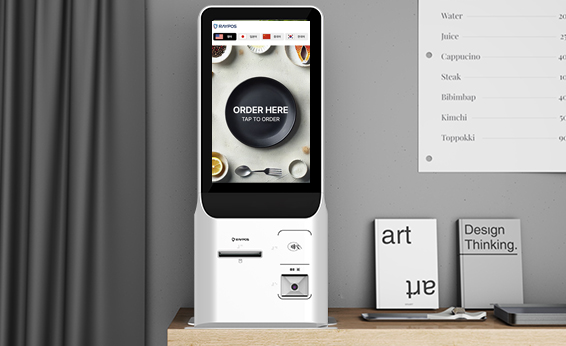

Elegant curved design by injection molding

simple and sleek 15.6-inch design

It is made by injection molding rather
than pressing, making it lightweight with
an elegant curved design.

Offers a clear display and fast response time
for convenient use with a resolution of
1920x100 pixels

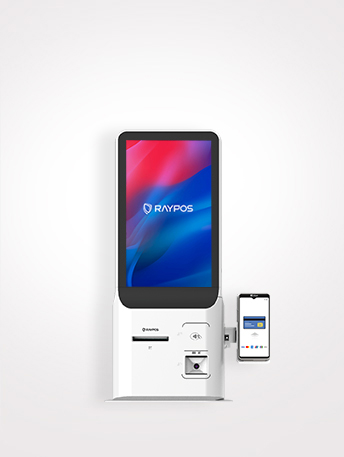

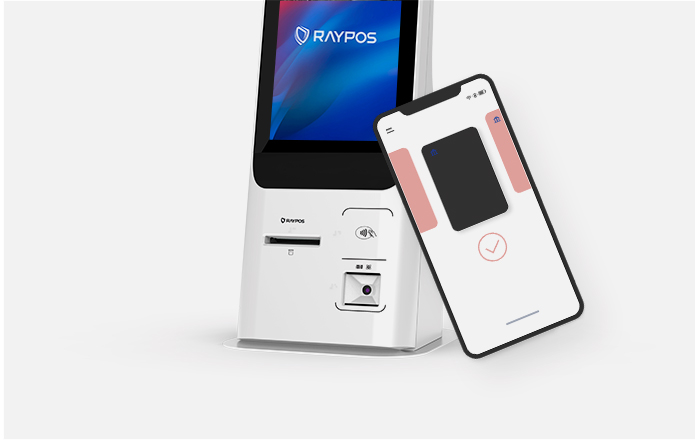

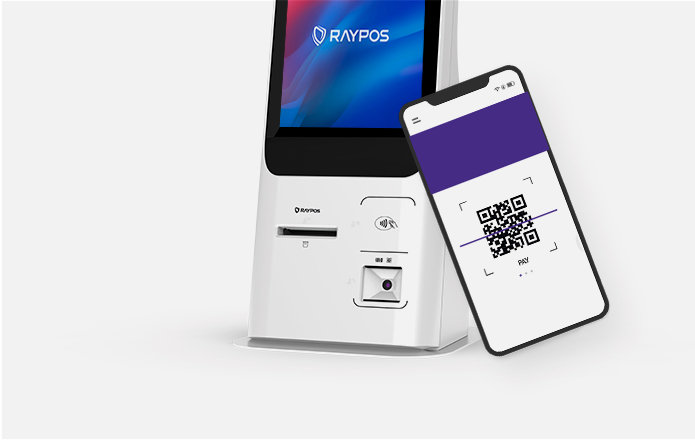

Supports high-performance QR/Barcode scanning and NFC Reader

Stable Connections enabling expanded communication with various solutions &
no errors in operation and orders.

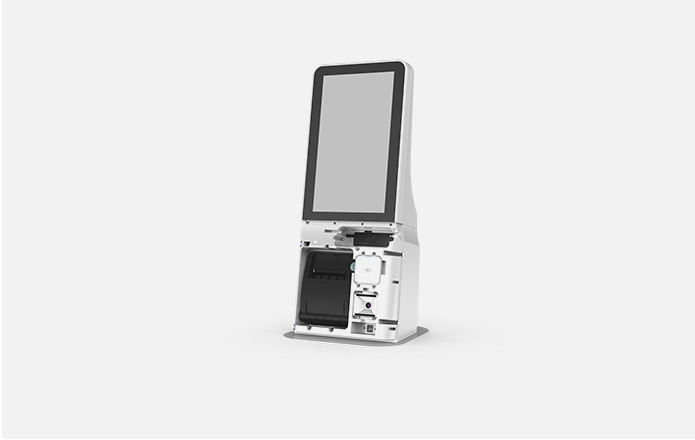

All parts are modularized, allowing for quick and easy response in the event of A/S and efficient cost reduction.

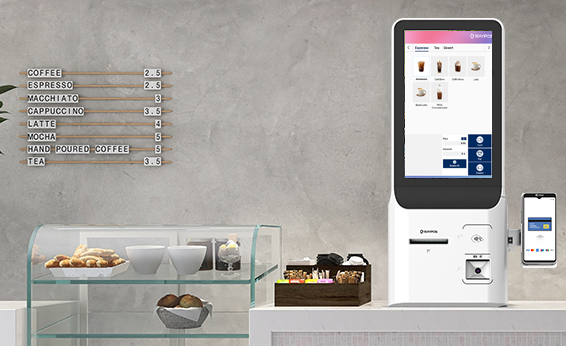

Café
Self-ordering reduces
labor costs
one-person store
A self-service kiosk will
take your order for you.
Big restaurant
Self-ordering makes
work more efficient in large, complex restaurants
Takeout restaurant
Increases efficiency

Processor

4x Cortex-A55 core,
2.0GHz
O/S

Android 11
Memory

DDR4 2GB (Up to 4GB)

eMMC 16GB (Up to 32GB)
Main Display

15.6”, TFT Color LCD 1280 x 800pixels (LED Backlight)

Capacitive Touch Panel
WiFi

802.11b/g/n
Bluetooth

BLE 4.2
Printer

3" Thermal Printer, 250mm/s, 80ф Roll paper
Barcode Reader

1D/2D Reader,
CMOS Camera, 0.3MP
Sound

5W x 2 Speaker
Operating
Temperature

0ºC to +50 ºC
NFC Reader
(Option)

ISO 14443 Type A/B,ISO18092, Mifare, Felica

EMV CL1. AMEX VISA,
MASTER, JCB, CUP

CE, FCC, KC
Peripheral ports

Rear2(USB 3.0 x 2 ports),
Front2(USB 2.0 x 2 ports)

Serial x 1 (DSUB9)

Ethernet x 1 (RJ45)

DC-Jack x 1
(Power DIN 4P)
Power Supply

24V DC @2.5A
Dimension

279mm(W) x
225mm(L) x
672.3mm(H)
Certification

FCC, CE, RoHs
