RAY10

Android Smart POS
Provide the NEW experience
of Digital Payment
  • PCI PTS 7.0
  • NFC Tap on Display
  • Android 13

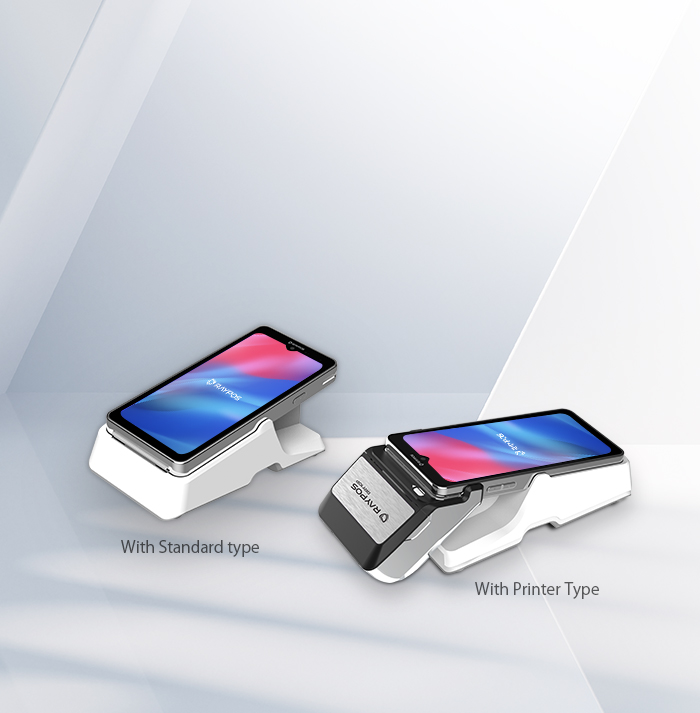

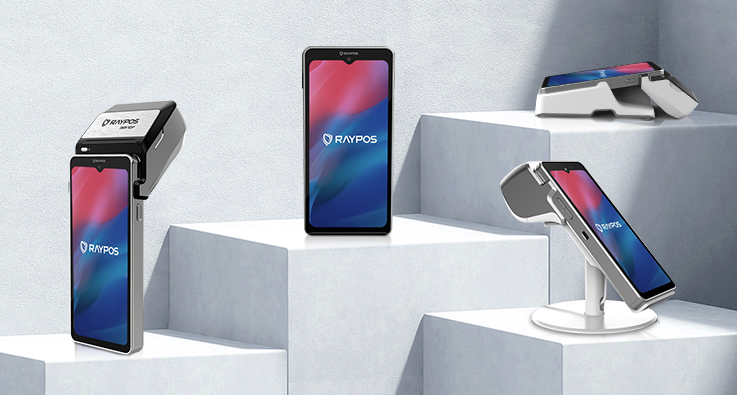

Various Configuration with Option Module

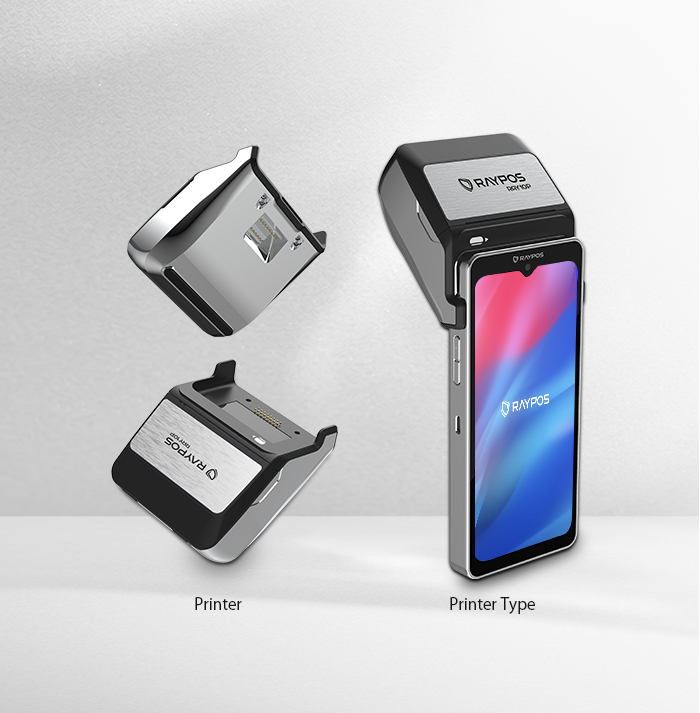

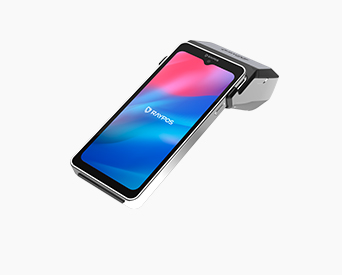

Printer Type

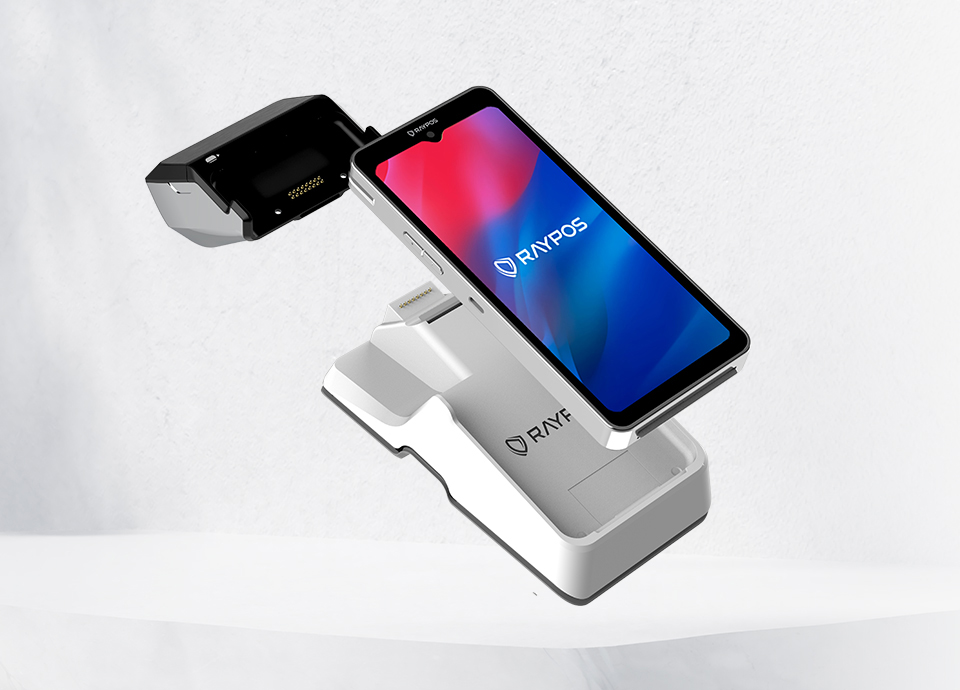

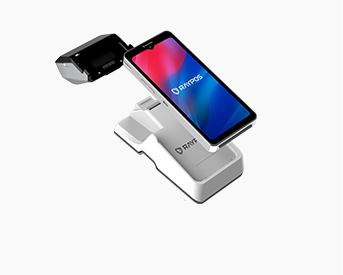

Countertop Type

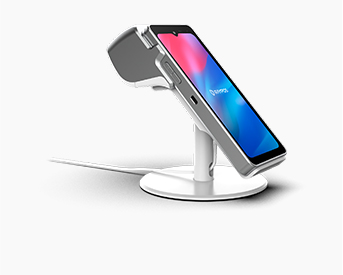

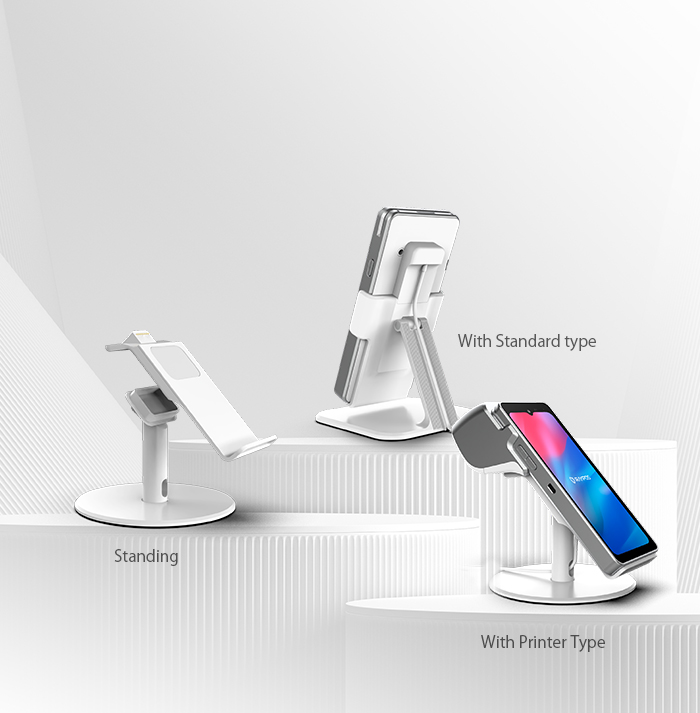

Standing Type

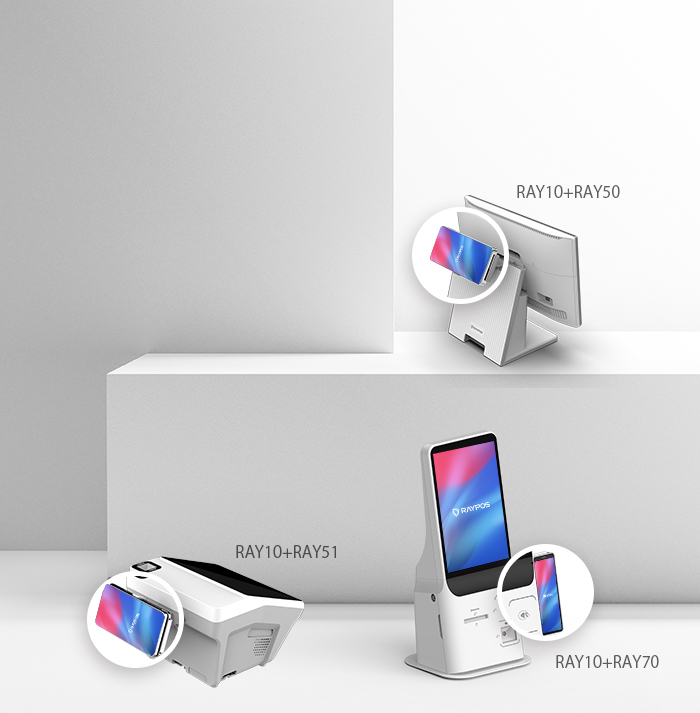

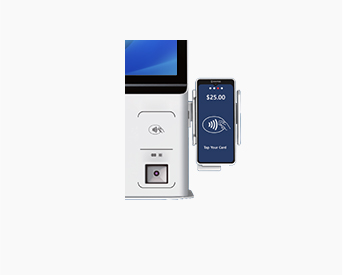

With Kiosk & POS
Minimalist & Sleek Design
with modular options

RAY10 can be combined with various options for versatile use.
Experience ever-changing smart POS, just like a chameleon.

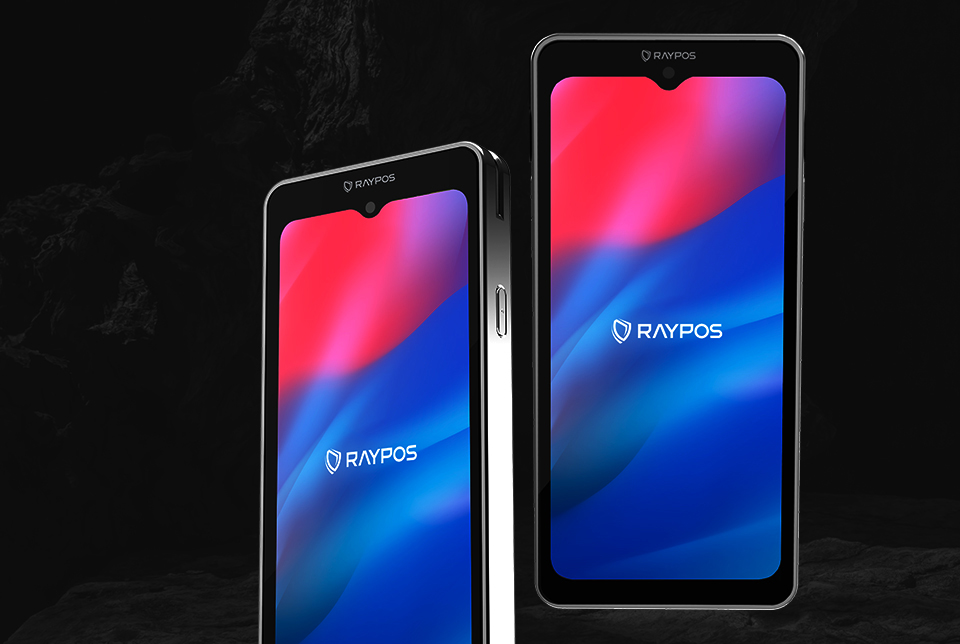

6.5-inch Innovative Display

The RAY10 uses a 6.5-inch TFT full-color LCD display,
offering high resolution and touch support.

Powerful Processor
Cortex Quad-core A53, 2.0GHz

4GB RAM + 64GB ROM
3GB RAM + 32GB ROM

It is ideal for merchants to
smoothly run business apps.

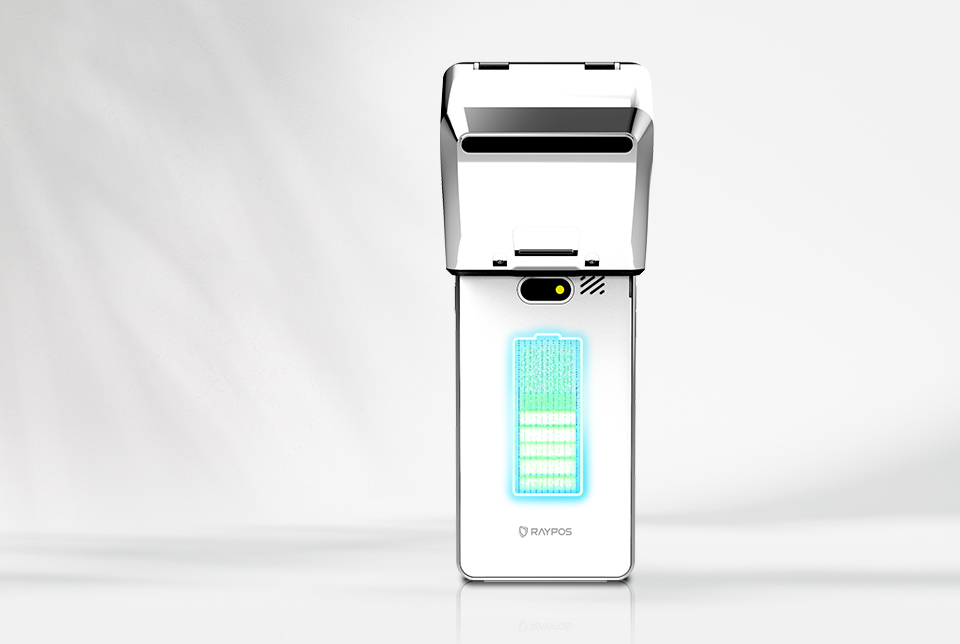

Large capacity 3200mAh battery

3200mAh large capacity battery, allowing
for extended use on a single charge.

All in one Payment Solution
Basic Features
Processor

Cortex Quad-core A53, 2.0GHz

O/S

Android 13

Data Communication
  • WIFI 802.11b/g/n 2.4G or5G, Bluetooth 5.0
  • 4G (LTE-FDD/LTE-TDD) + 3G (WCDMA) + 2G (GSM)
Memory
  • RAM 2GB(up to 4GB)
  • ROM 16GB(up to 64GB)
Display

6.5-inch TFT IPS,
720 x 1600
Multi-touch

Camera

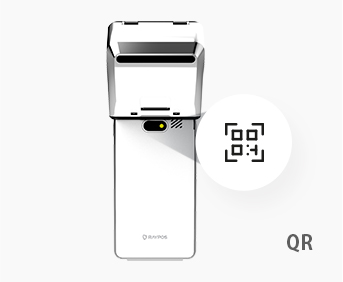

  • Rear Camera: 5MP autofocus, 1D/2D Barcode
  • Front Camera: 2MP, Support 1D/2D Barcode
Power
  • 5.0V DC, 2.0A Adapter
  • 3.8V/3200mAh Battery
GPS

Beidou/GLONASS/Galileo/QZSS/SBAS

Dimension & Weight

175.0 x 80.0 x17.3
(mm, L x W x H)
300g

Peripheral ports

1 x Type C port (OTG),
POGO Pin(F) x16
Card Slot
Micro SD x 1, Nano USIM x
1 + eSIM x 1, SAM slot x 2

Sound
  • 1W Speaker
  • Buzzer
  • Microphone
Payment Solution

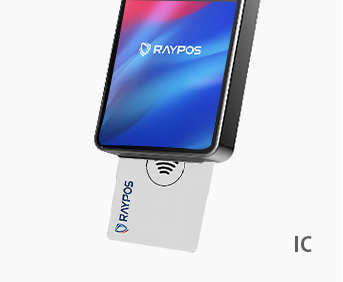

  • IC Contact ISO7816

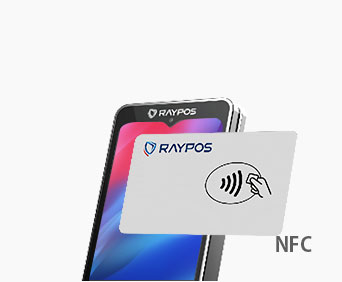

  • NFC ISO 14443 Type A/B, Mifare, Felica, ISO18092

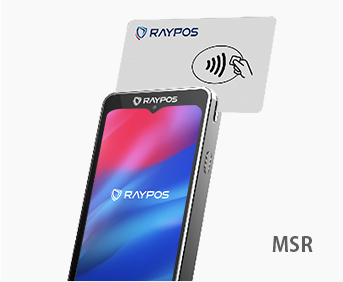

  • MSR ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bidirectional
Certification
  • PCI PTS V7, EMV Contact L1, EMV Contact L2, EMV CL1. Felica
  • AMEX VISA, MASTER, JCB, Discover
  • CE, FCC, Telec, KC, TQM
Environment
  • Operation Temp.
    0ºC to +50 ºC
  • Storage Temp.
    -20°C ~ 70 ºC
  • Humidity 5%-96%
    (Non-Condensing)
